Small Loader,(WSM976T42)

No.	Item Name		unit	WSM976T42
1	The Whole machine size	Length(fork on ground)	mm	10440
2		width	mm	3450
3		height	mm	3675
4	Working device geometry parameters	Curb weight	Kg	43500
5		Max traction force	KN	265
6		Fuel capacity	L	425
7		Hydraulic tank capacity	L	500
8		Axle base	mm	4500
9		Wheel track	mm	2690
10		Min turning Radius	mm	9061
11		Gradeability (no-load/Full load)	%	30/14
12		Min.ground clearance	mm	400
13	Working device geometry parameters	Max.Lifting height	mm	3200
14		Fork standard size	mm	1600280150
15	work capacity	Load center distance	mm	1000
16		Rated Load capacity	Kg	42000
17		Max lift capacity	kg	47000（H.1.6m）
18		Rated power	Kw/rpm	213
With the improvement of the new technology, the product structure and parameters will be continuously improved ,if the sample information is not in conformity with the physical object, pls refer to the object.

Productname：	Small Loader,(WSM976T42)
Product Number：
Product Introduction：

Product specification

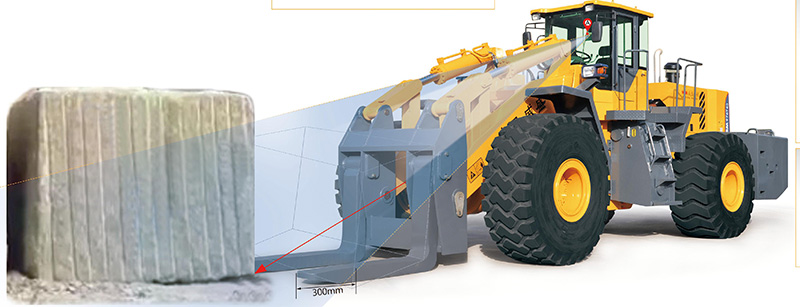

wheel loader WSM976T42 The driver A point is the height of 700mm away from the seat (normal sitting position). When the fork is flat ground,horizontal, we can see the fork and fork tip fork into 300mm way.In the lifting process, the driver can see the tip and fork, it is safe to work.wheel loader WSM976T42

wheel loader WSM976T42 standard configuration

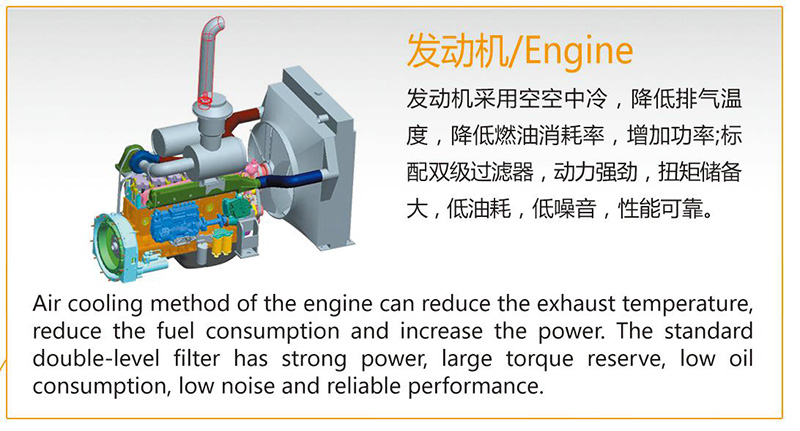

wheel loader WSM976T42 l Engine: China Steyr Tier 3 engine

l Transmission: ZL80

l Operation way: Pilot control

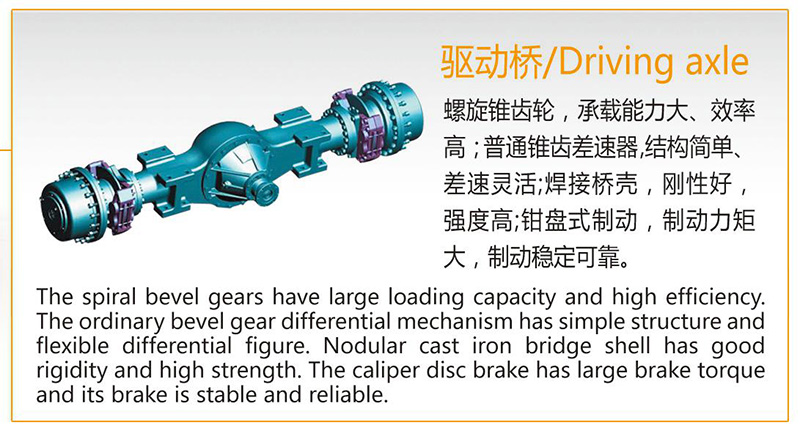

Drive axle: WSM heavy duty drive axle.

Cooling system： Large water tank，oil cooler

Attachment: forkl

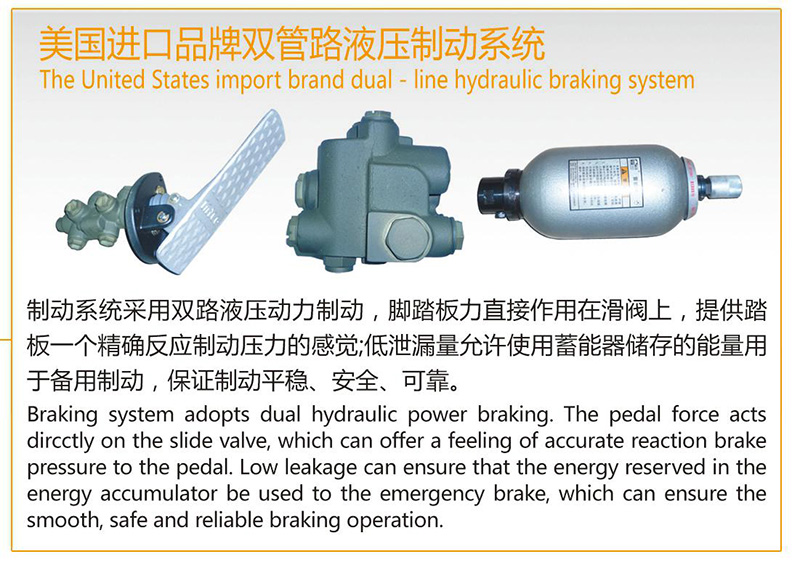

The braking system：Gas cap oil brake system
